5 Ribs Membrane Roof Panel
Our roof panels, designed to provide maximum thermal insulation of flat and low-slope roofs created with space cage and similar steel roof systems, attract attention with their 5-rib membrane structure. These panels, whose lower surfaces are coated with TPO or PVC, provide an ideal basis for applying membranes. In this way, the waterproofing and insulation of roofs is ensured at the highest level, the durability of the structures is increased and energy efficiency is ensured.
| Place of Use | Roof |

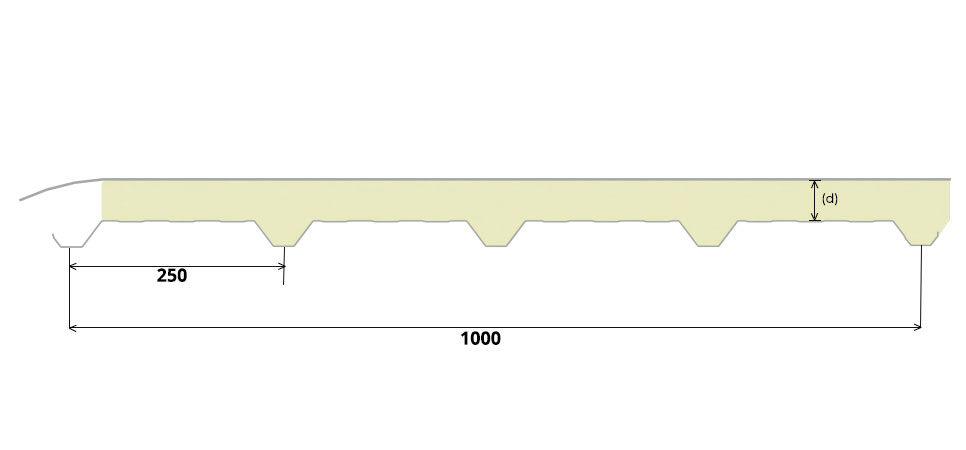

| Useful Width | 1000 mm |
| Minimum Length | 2,4 m |
| Maximum Length | Depends on transport conditions. |
| Polyurethane Density (EN 1602) | 40 (±2) kg/m³ |
| Polyurethane Thickness | 40-50-60-80-100 mm |
| Flammability Class (EN13501) | B, s2, d0 |
| Metal Type | Prepainted Galvanized Steel Sheets |
| PVC Thickness | 1,2 mm |
| Standard Bottom Sheet Thickness | 0,50 - 0,60 mm |
| Unit Weight on the PVC Area | 1,55 kg/m² ±5% |
| PVC Standard Appearance | Light gray, matt |
| PVC | BGS | PURLIN DISTANCE | ||||
|
Upper Membrane (mm) |
Bottom Sheet Thickness (mm) |
150 cm | 200 cm | 250 cm | 300 cm | 325 cm |
| 1,2 | 0,50 | 232 | 126 | 80 | 56 | - |
| 1,2 | 0,60 | 272 | 158 | 100 | 63 | - |
