3 Ribs Roof Panel

3 Ribs Roof Panel
3 Ribs Roof Panel
3 Ribs Roof Panel
3 Ribs Roof Panel
3 Ribs Roof Panel
3 Ribs Roof Panel
3 Ribs Roof Panel
3 Ribs Roof Panel
3 Ribs Roof Panel
3 Ribs Roof Panel
3 Ribs Roof Panel 3 Ribs Roof Panel 3 Ribs Roof Panel 3 Ribs Roof Panel 3 Ribs Roof Panel 3 Ribs Roof Panel 3 Ribs Roof Panel 3 Ribs Roof Panel 3 Ribs Roof Panel 3 Ribs Roof Panel

3 Ribs Roof Panel

Our 3-ribs roof panels do not attract and absorb water, thanks to the load-bearing performance of polyurethane insulated roof panels and their superior performance against humidity. It allows you to choose the most economical form by being produced in different forms according to your request. It has high resistance to heat and does not sustain the flame when it flares up.



Place of Use Roof

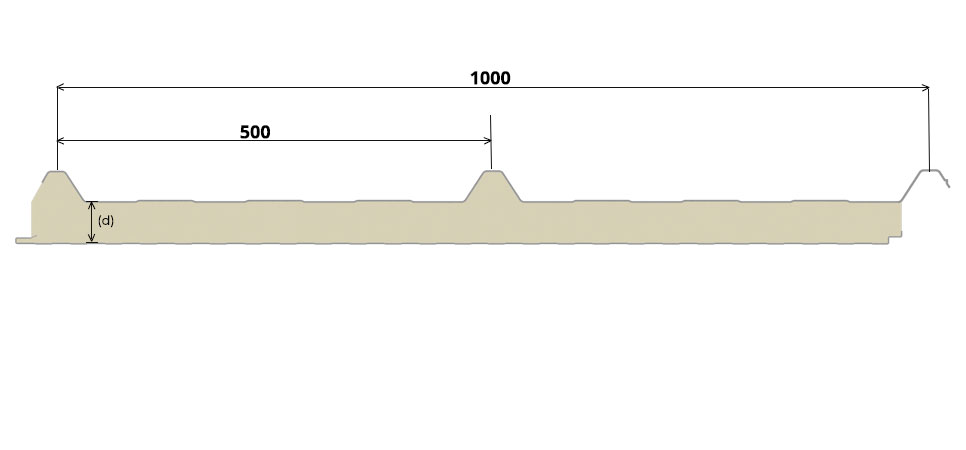

Useful Width 1000 mm
Minimum Length 2,4 m
Maximum Length Depends on Shipping Conditions
Polyurethane Density (EN 1602) 40 (±2) kg/m³
Polyurethane Thickness 30-40-50-60-80-100 mm
Fire Classification (EN1350) B, s2, d0
Metal Type Painted Galvanized Steel Sheet or Aluminium Sheet
Standard External Metal Thickness 0,50 mm
Standard Internal Metal Thickness 0,40 mm
PGSS PGSS PURLING SPACING
Top Metal Thickness (mm) Bottom Metal Thickness (mm)

PUR

(mm)

 150 cm 175 cm 200 cm 225 cm 250 cm 275 cm 300 cm 325 cm 350 cm
0,50 0,40 40 164 125 105 86 71 59 49 38 33
0,50 0,40 50 232 164 139 116 96 79 66 54 50
0,50 0,40 60 281 211 176 148 123 107 87 68 64
0,50 0,40 80 399 307 243 211 171 145 122 98 89
ALUMINIUM ALUMINIUM PURLING SPACING
Top Metal Thickness (mm) Bottom Metal Thickness (mm)

PUR

(mm)

 150 cm 175 cm 200 cm 225 cm 250 cm 275 cm 300 cm 325 cm 350 cm
0,50 0,40 40 253 191 161 142 117 107 88 75 68
0,50 0,40 50 320 253 209 189 154 134 116 99 88
0,50 0,40 60 362 350 259 229 185 169 145 125 113
0,50 0,40 80 493 420 334 307 254 224 195 157 141





Coating Types

It offers high resistance to external environmental conditions, high level of flexibility and temperature balance. This type of paint has a wide range of uses and is among the most widely preferred. Ideal for a variety of purposes indoors and outdoors, it offers a versatile solution.

It provides superior durability and high corrosion resistance against the harsh effects of the external environment. It is also resistant to chemicals. This type of coating also offers strong protection against chemicals and UV rays. The permanence and brightness of its colors are at the highest level, distinguishing it from other coating types. For this reason, it is a preferred coating option on the roofs and facades of prestigious buildings.

It has a wonderfully malleable and flexible structure. It is resistant to moisture and abrasion and is preferred in applications that comply with food regulations. Additionally, it exhibits superior performance in cold and humid climate conditions.

Its application is carried out by the lamination method. It is an ideal choice in areas that require intense shaping and flexibility. Its hygienic and easy-to-clean features provide a significant advantage for applications that comply with food regulations.
