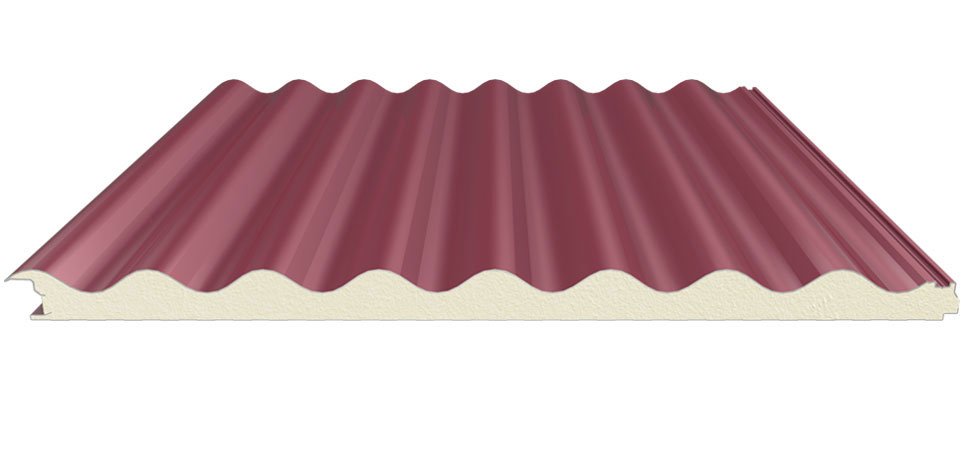

Sinus Facade Panels
Our Sinus Concealed Screw Facade Panels offer innovative solutions to your buildings both technically and aesthetically. Our sinusoidal facade panels offer our customers a wide range of options in various colors and forms. Thanks to its PUR insulation, it provides effective protection against water, heat and sound. Additionally, it offers a high level of security against fire with its PIR feature.
Place of Use | Facade and Roof |
Useful Width | 1000 mm |
Minimum Length | 2,4 m |
Maximum Length | Depends on Shipping Conditions |
Polyurethane Density (EN 1602) | 40 (±2) kg/m³ |
Polyurethane Thickness | 50 - 60 mm |
Fire Classification (EN1350) | b, s2, d0 |
Metal Type | Painted Galvanized Sheet |
Standard External Metal Thickness | 0,50 mm |
Standard External Metal Thickness | 0,40 mm |
PGSS | PGSS | PURLING SPACING | ||||
Top Metal Thickness (mm) | Bottom Metal Thickness (mm) |
PUR (mm) |
100cm | 150cm | 200cm | 250cm |
0,50 | 0,40 | 50 | 302 | 215 | 149 | 121 |
0,50 | 0,40 | 60 | 337 | 263 | 179 | 134 |
