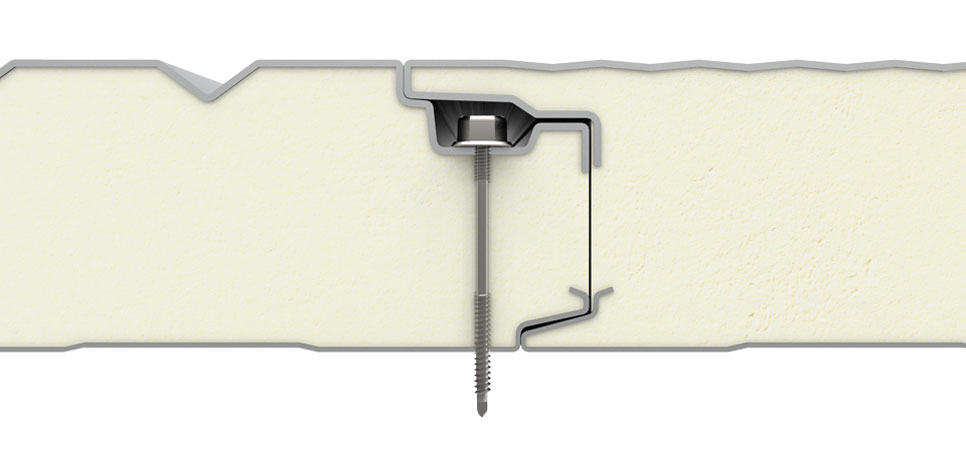

Concealed fastener V Facade Panel

Our Hidden Screw V Facade Panels give your buildings a unique and aesthetic appearance. Our V panels are produced in various forms and color options requested by our customers, so they are presented ready for use. Thanks to its PUR insulation, it provides effective protection against external factors such as water, heat and sound. Additionally, thanks to its PIR insulation, it has high resistance to fire and increases safety in fire situations.

Place of Use	Facade

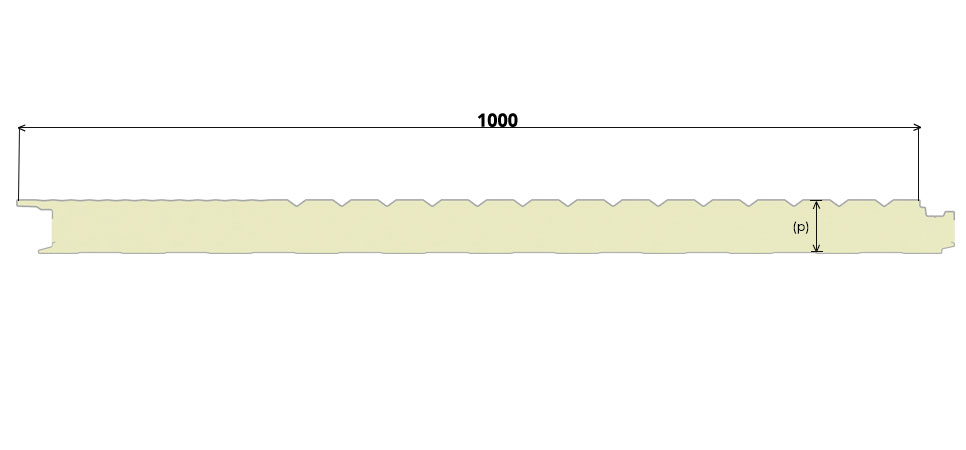

Useful Width	1000 mm
Minimum Length	2,4 m
Maximum Lenghth	Depends on Shipping Conditions
Polyurethane Density (EN 1602)	40 (±2) kg/m³
Polyurethane Thickness	40-50-60-80 mm
Fire Classification (EN1350)	B, s2, d0
Metal Type	Painted Galvanized Sheet
Standard External Metal Thickness	0,50 mm
Standard External Metal Thickness	0,40 mm

PGSS	PGSS	PURLING SPACING
Top Sheet Thickness (mm)	Bottom Sheet Thickness (mm)	PUR (mm)	100 cm	150 cm	200 cm	250 cm
0,50	0,40	40	261	182	121	250
0,50	0,40	50	302	215	149	121
0,50	0,40	60	337	263	179	134

Coating Types

It offers high resistance to external environmental conditions, high level of flexibility and temperature balance. This type of paint has a wide range of uses and is among the most widely preferred. Ideal for a variety of purposes indoors and outdoors, it offers a versatile solution.

It provides superior durability and high corrosion resistance against the harsh effects of the external environment. It is also resistant to chemicals. This type of coating also offers strong protection against chemicals and UV rays. The permanence and brightness of its colors are at the highest level, distinguishing it from other coating types. For this reason, it is a preferred coating option on the roofs and facades of prestigious buildings.

It has a wonderfully malleable and flexible structure. It is resistant to moisture and abrasion and is preferred in applications that comply with food regulations. Additionally, it exhibits superior performance in cold and humid climate conditions.

Its application is carried out by the lamination method. It is an ideal choice in areas that require intense shaping and flexibility. Its hygienic and easy-to-clean features provide a significant advantage for applications that comply with food regulations.
