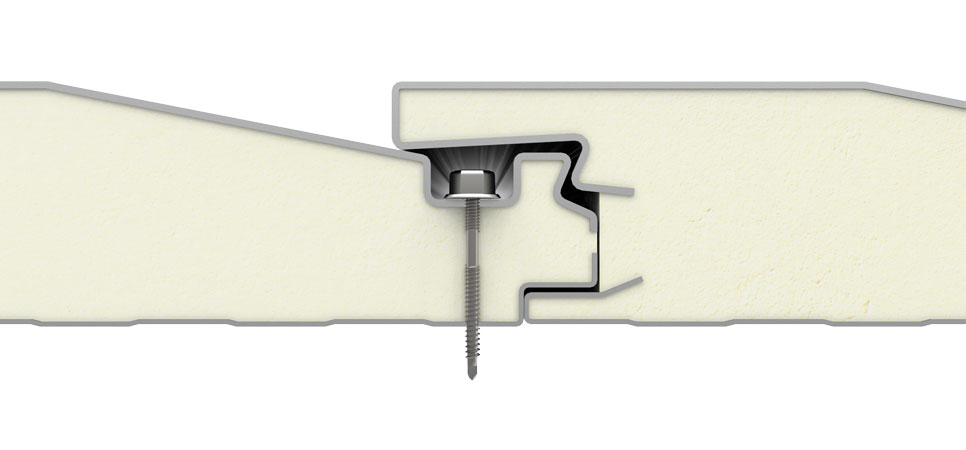

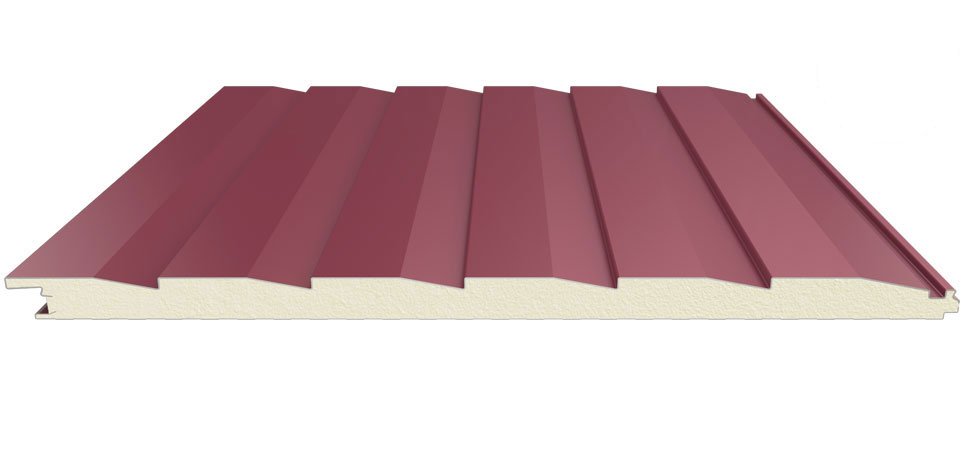

Concealed Fastener Siding Facade Panel
Our Hidden Screw Siding Facade Panels are born from the combination of aesthetics and technical excellence. While it adds aesthetic appeal to your buildings with its different appearances, it also offers a wide range of products with the color scale and various form options preferred by our customers. Thanks to PUR insulation, it provides protection against sound, heat and water, while PIR insulation prevents flaming by providing a superior performance against fire.
| Place of Use | Facade |

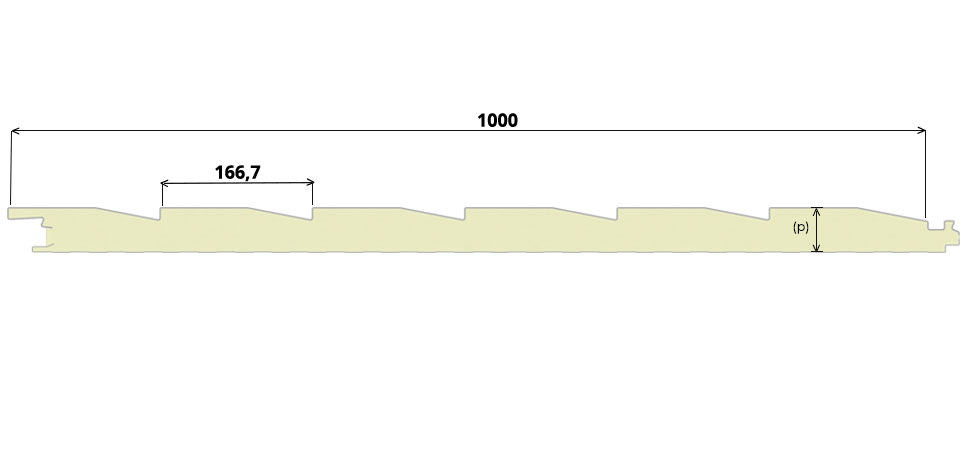

| Useful Width | 1000 mm |
| Minimum Length | 2,4 m |
| Maximum Length | Depends on Shipping Conditions |
| Polyurethane Density (EN 1602) | 40 (±2) kg/m³ |
| Polyurethane Thickness | 50-60 mm |
| Flammability Class (EN 13501) | B, s2, d0 |
| Metal Type | Painted Galvanized Sheet |
| Standard External Metal Thickness | 0,50 mm |
| Standard External Metal Thickness | 0,40 mm |
| PGSS | PGSS | PURLING SPACING | ||||
| Top Metal Thickness (mm) | Bottom Metal Thickness (mm) |
PUR (mm) |
100 cm | 150 cm | 200 cm | 250 cm |
| 0,50 | 0,40 | 50 | 302 | 215 | 149 | 121 |
| 0,50 | 0,40 | 60 | 337 | 263 | 179 | 134 |
