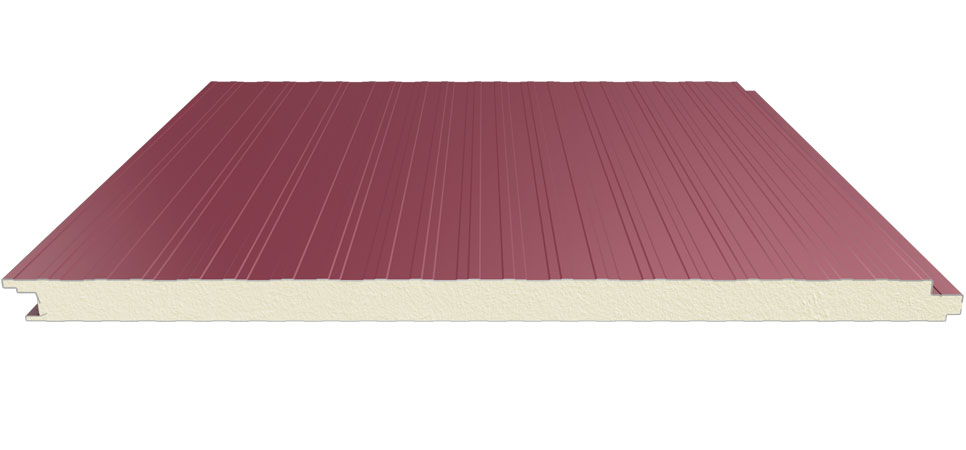

Concealed Fastener Facade Panel Classic

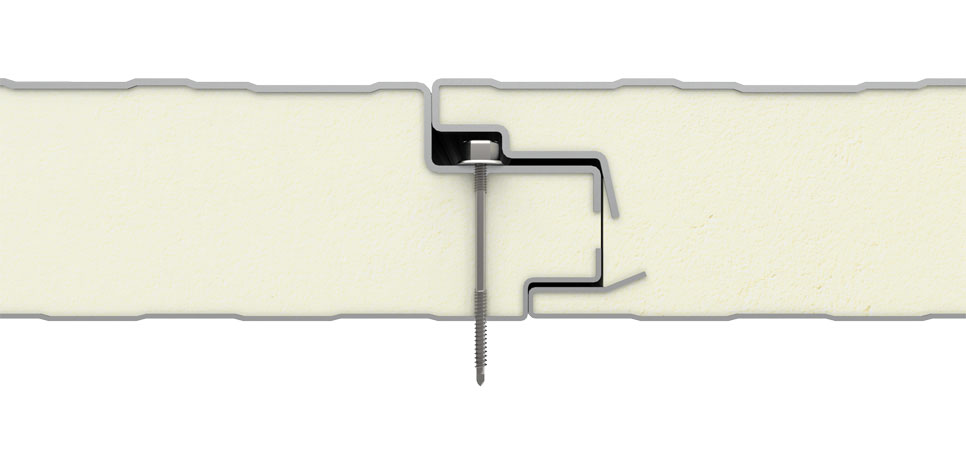

The most striking feature of our Hidden Screw Facade Panels is that the screw joints are not visible from the outside. It provides superior insulation in buildings by providing easy horizontal and vertical installation. PUR insulation feature, which provides water tightness and heat and sound insulation, protects buildings from external factors. In addition, PIR insulation, which has high resistance to fire, keeps safety at the highest level. These panels, which stand out with their aesthetic and economical design, add visual elegance to the structure and protect the budget.

Place of Use	Facade

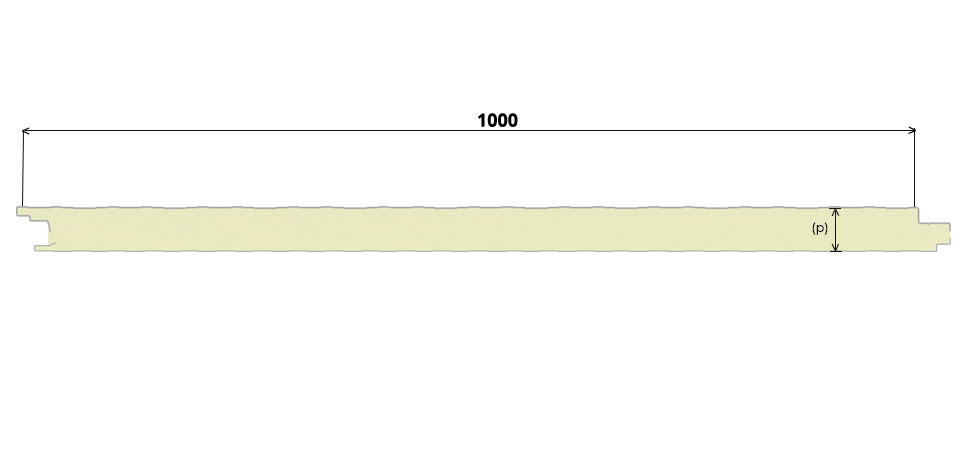

Useful Width	1000 mm
Minimum Length	2,4 m
Maximum Length	Depends on Shipping Conditions
Polyurethane Density (EN 1602)	40 (±2) kg/m³
Polyurethane Thickness	40-50-60-80 mm
Fire Classification (EN1350)	B, s2, d0
Type Of Metal	Painted Galvanized Sheet
Standard External Metal Thickness	0,50 mm
Standard External Metal Thickness	0,40 mm

PGSS	PGSS	PURLING SPACING
Top Metal Thickness (mm)	Bottom Metal Thickness (mm)	PUR (mm)	100 cm	150 cm	200 cm	250 cm
0,50	0,40	40	261	182	121	250
0,50	0,40	50	302	215	149	121
0,50	0,40	60	337	263	179	134

Coating Types

It offers high resistance to external environmental conditions, high level of flexibility and temperature balance. This type of paint has a wide range of uses and is among the most widely preferred. Ideal for a variety of purposes indoors and outdoors, it offers a versatile solution.

It provides superior durability and high corrosion resistance against the harsh effects of the external environment. It is also resistant to chemicals. This type of coating also offers strong protection against chemicals and UV rays. The permanence and brightness of its colors are at the highest level, distinguishing it from other coating types. For this reason, it is a preferred coating option on the roofs and facades of prestigious buildings.

It has a wonderfully malleable and flexible structure. It is resistant to moisture and abrasion and is preferred in applications that comply with food regulations. Additionally, it exhibits superior performance in cold and humid climate conditions.

Its application is carried out by the lamination method. It is an ideal choice in areas that require intense shaping and flexibility. Its hygienic and easy-to-clean features provide a significant advantage for applications that comply with food regulations.
